Black Friday Sale:AZ Telescope Mount & Tripod SV225 | Svbony
3 | Reviews- Fine Adjustment Shift: Allows precise fine-tuning of the telescope;
- Variable Speed Gear: The A-Z mount features variable speed gear slow-motion controls on both axes;
- CNC Hollow Structure: Adopts a hollow design, making it lightweight and easy to carry;
- Load Capacity: Supports a payload of up to 10 kg;
- Multi-functional Design: Features a two-stage telescopic design for easy portability. Rubberized feet with a stone-protruding design ensure stability.
Customer Reviews
Dr. Marco Traub
Oct 28, 2025
Bonnie and the team performed exceptionally well. The telescope mount is of excellent quality and the delivery time was extremely short.
Dr. Marco Traub
Oct 28, 2025
Dear Bonnie and Team many thanks for your exceptional Service and product. The delivery time was ultrashort and packing and the quality of the mount and the telescope are outstanding.
Thomas Radke
May 03, 2025

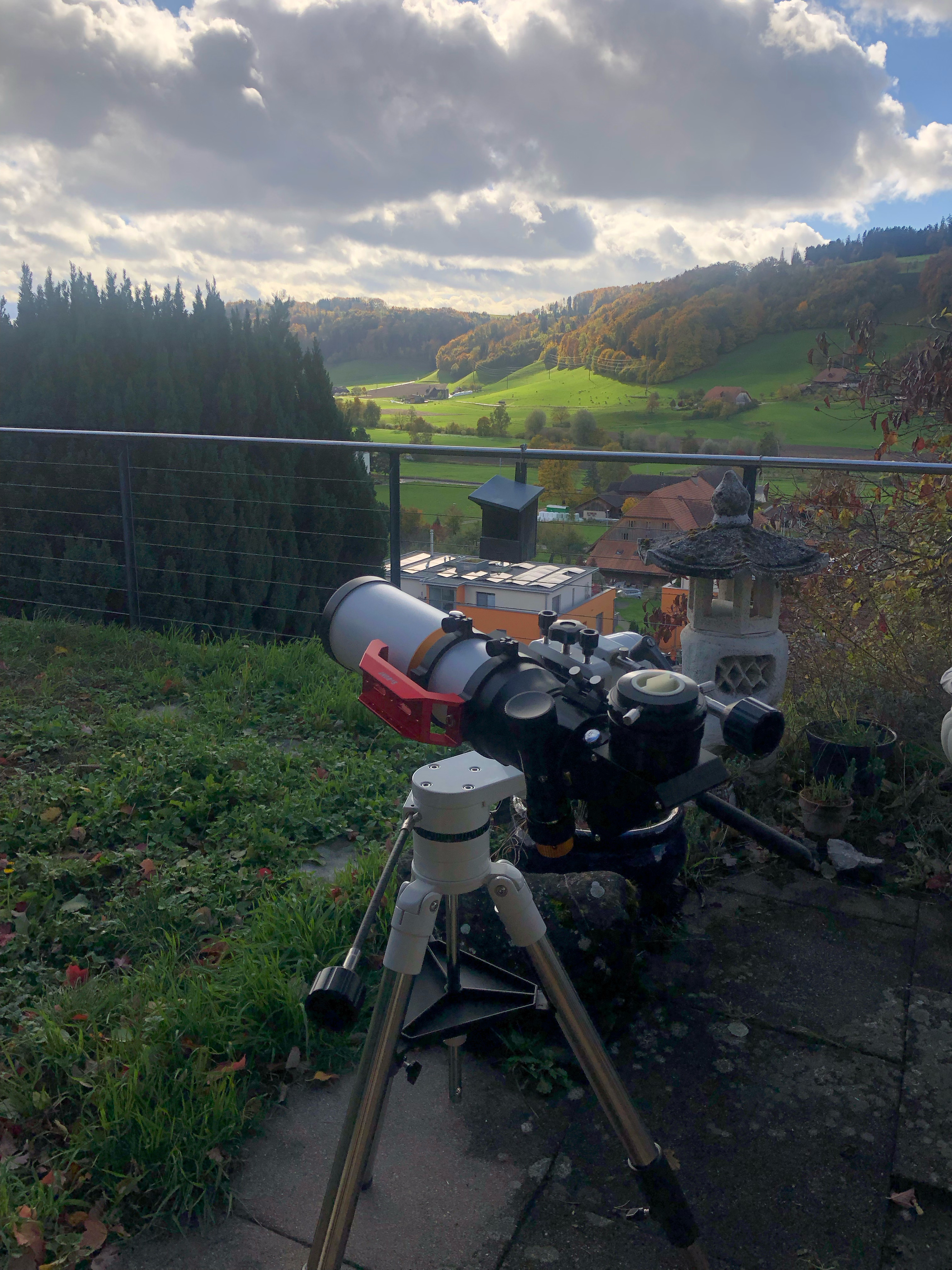

I have really grown to appreciate the build quality and professional features of this tripod and mount. It is very quality and extremely sturdy. This mount and tripod does not feel cheap at all and is professional grade in my opinion. Has slow motion controls which is really nice and allows you to mount just about anything to it. I have my SV503 80mm F7 ED mounted to it and it works like a dream! I am planning to purchase a second one of these for my MAK as well. Great design!
| Model | SV225T |
| Installation interface screw | UNC 3/8-16 |
| Folded Length | 500mm |
| Max. Tube Diameter | 32mm |
| Chassis Diameter | 83mm |
| Leg Section | 3 |
| Max Loading Capacity | 12kg |
| Maximum support interface screw | 180mm |
| Sections | 2 |
| Material | Aluminum Alloy |
| Net weight | 2263g |
| Package Size | 543x193x185mm |
| Model | SV225 |
| Max. additional load capacity | 10kg |
| Mounting Saddle | Vixen-Style |
| Fine adjustment | Yes |
| Manual tracking | Yes |
| Underneath the Base thread | UNC 3/8 -16 Female |
| Worm gear teeth (RA) (piece) | 120 |
| Altitude Mount Rotation Angle (Continuous) | -60° to + 60° |
| Azimuth Mount Rotation Angle (Continuous) | 360° |
| Material | Aluminum 6061T |
| Net Weight | 3.50kg |
| Diameters |
340*285*145mm |
